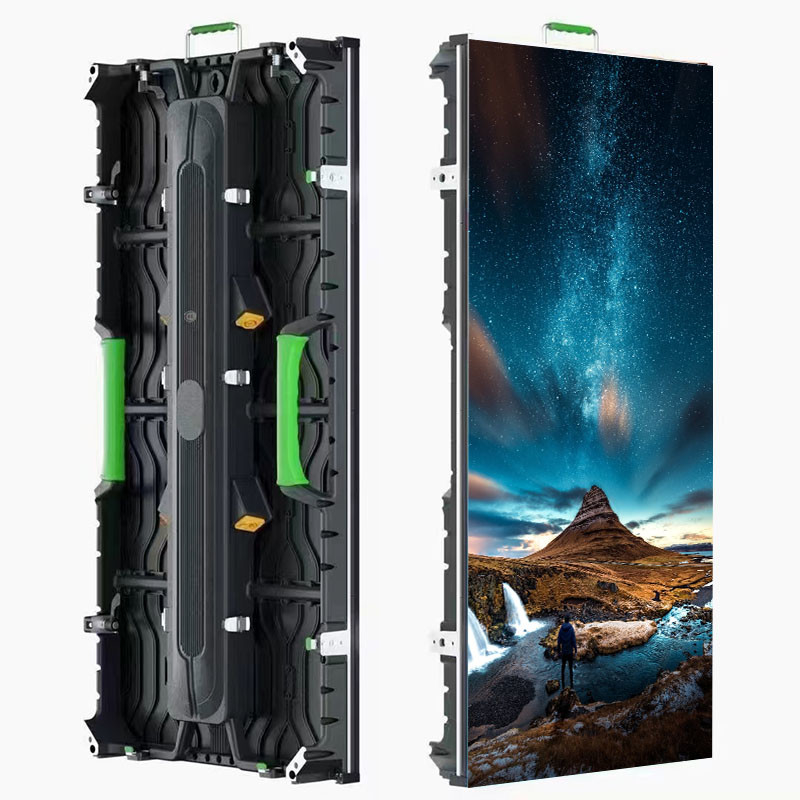

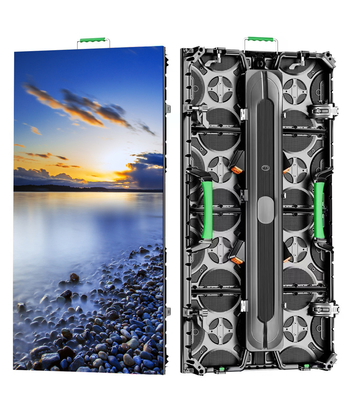

Concert Stage LED Backdrop Screen 500X1000mm Indoor LED Wall Stage Backdrop
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed/oem/odm |
| Certification: | CE, ROHS, ISO 9001, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 8 Square Meters |
|---|---|
| Price: | $780.00/Square Meters 8-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor Building / Gymnasium / Real Estate/ | Name: | LED Stage Backdrop Screen |
|---|---|---|---|
| Working Environment: | Indoor/outdoor | Vertical Viewing Angle(Deg): | 160/160 |
| Support Input: | Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI | Refresh Rate(Hz): | 3840hz |
| High Light: | Concert Stage LED Backdrop Screen FCC,Stage LED Backdrop Screen 500X1000mm,Customized LED Wall Stage Backdrop |
||
Product Description

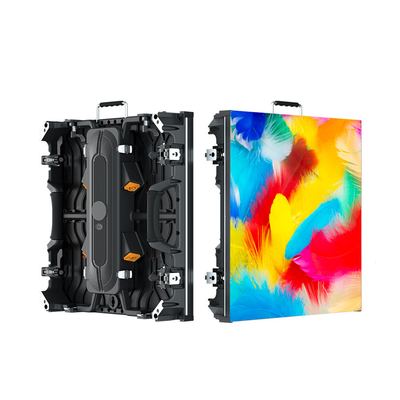

p2.6 / p2.9/ p3.9/p4.8 indoor and outdoor led display, 3840 high refresh 500*500mm cabinets /500*1000mm cabinet,indoor brightness
≥1000nits ,outdoor brightness ≥5000nits.
Novastar control system, with power connector and signal connector , flight case available too , welcome to inquiry
| Model | P2.6-IN | P2.9-IN | P3.9-IN | P3.9-OD | P4.8-OD |
| Pixel Pitch | 2.6 | 2.9 | 3.9 | 3.91 | 4.81 |
| Pixel Density(dot/m2) | 147,456 | 112896 | 65536 | 65536 | 43264 |
| LED Type | SMD2121 | SMD2121 | SMD2121 | SMD1921 | SMD1921 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Weight(±0.25kg) | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 |
| Cabinet Resolution(px*px) | 192*192 | 168*168 | 128*128 | 128*128/128*256 | 104*104/104*208 |
| Module Resolution(px*px) | 96*96 | 86*86 | 64*64 | 64*64 | 52*52 |
| Vertical Viewing Angle(Deg) | H160/V120 | H160/V120 | H160/V120 | H160/V120 | H160/V120 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 4500 | 4500 |
| Gray Scale(bit) | 16 | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/sqm) | 400 | 400 | 400 | 700 | 700 |
| Average Power Consumption(W/sqm) | 120 | 120 | 120 | 210 | 210 |
| Input Voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 |
| Ingress Protection | IP43 | IP43 | IP43 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Outdoor | Outdoor |
FAQ
Q1: What is your products packing?
A1: We provide 3 kinds of packing case: carton paper case, plywood packing case and flight packing case. Carton paper case for led module. Wooden packing case for fixed installation cabinet. Flight packing case for rental cabinet.
Q2: How to install it after i received it?
A2: We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
Q3: How is the after sales service?
A3: We have a professional team which is in all around the world, also a service hot-line dealing with your voice and feedback. We also offer 24-hour online service to help you solving problems.
4. WHAT IS THE PAYMENT TERMS?
30% deposit by TT, 70% balance before shipment.
