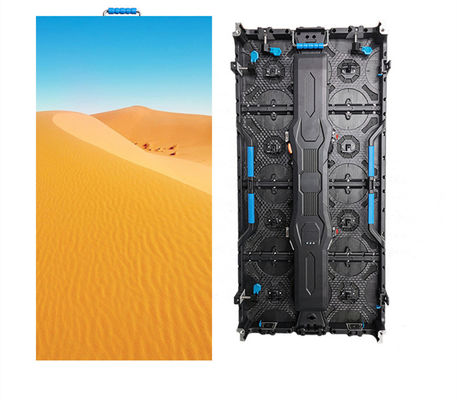

P3.9 Flexible Curved Video Wall High Refresh Rate 3840HZ Excellent Color Uniformity
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Certification: | ETL, FCC, CCC, RoHS,CE |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 8 Pieces |
|---|---|
| Price: | $210.00/Pieces 8-99 Pieces |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor Rental Led Display | LED Type: | SMD 2121 |
|---|---|---|---|
| Power Supply Request: | AC85-264V(50Hz-60Hz) | Gray Scale: | 65536 |
| Signal Input Format (with Video Processor): | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | Control Distance: | CAT5 Cable ＜100 M Single Fiber ＜10 Km |
| High Light: | 3840HZ Curved LED Video Wall,P3.9 Curved Video Wall Displays,Curved Led Video Wall SMD 2121 |
||
Product Description
P3.9 Flexible Curved Video Wall High Refresh Rate 3840HZ Excellent Color Uniformity
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Application:
Applied in Entertainment complexes, Hotel conference room, Restaurants, Showrooms, Casinos, Government facilities, Theaters, Retail outlets, Traffic control room, Security monitoring room, Stage background, events, HD cinema, Shopping malls, Railway stations, Airports and other indoor advertising and events places.
| Module Number | PH2.604 | PH2.976 | PH3.91 | PH4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Physical Density | 147456 pixels/m2 | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
| Led Arrangement | 3 in 1SMD | 3 in 1 SMD | 3 in 1SMD | 3 in 1 SMD |
| Module Resolution | 96*96 pixels | 84*84 pixels | 64*64 pixels | 52*52 pixels |
| Module Dimensions | 250*250 mm | 250*250mm | 250*250 mm | 250*250mm |
| Cabinet Resolution | 192*192 pixels | 168*168 pixel | 128*128 pixels | 104*104 pixel |
| Cabinet Dimensions | 500*500 mm | 500*500 mm | 500*500 mm | 500*500 mm |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Brightness | ≥5000 nits | ≥5000 nits | ≥5000 nits | ≥5000 nits |
| Max Power Consumption | 180w/panel | 180w/panel | 180w/panel | 132w/panel |
| Ave Power Consumption | 60w/panel | 60w/panel | 60w/panel | 44w/panel |
| Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
| Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
| Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
| Verification | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |
before. Rotational control, more accurate, easy to use and quickly adjust curve degree.
Our Service of curved video wall:
Translumens LED specialize in providing customer a customized solution according to the project condition, all the technical support is available with assisting customer to complete the project. We will offer you as below:
1. Consultation service
The information of our products, including solutions available, price, module and cabinet specification, control system, package, customer service and any other aspects you would like to know. In any time, the case for reference is available according to your projects.
2. Installation condition estimation
In any project, Translumens LED can manufacture the LED display as you requesting. Meanwhile, if customer is not experienced in LED display area, the installation of the project can be estimated by our sales and engineers, including the brightness, viewing angle and distance, installation method, front or back service etc. We will customized the solution and offer according to the information we get.
3. Solution customized
The solution will be described as a PDF file by our sales and sent to you. The product specification, control system, offer, package, spare part list, payment term, and shipping cost will be included.
4. Technical support
Translumens LED has developed a strong powerful engineer team for any of your requirement, including PCB, cabinet, electronics, production, BOM, QC and picture processing, to make sure you can get the full service support from Translumens LED. The engineering team ensure the availability for the special project and request.
Meanwhile, base on the project, the drawing will be provided to you by our engineers if you need.
a) CAD drawing for modules, cabinets and steel structure
b) 3D drawing is optional
5. Two years warranty
During 2 years, Translumens LED will provide the maintenance service of all equipment under the contract, by free replacement and maintenance for any equipment damage or parts from product design, installation techniques, materials, product quality and components.
