Full Color Advertising Billboard Panel Outdoor LED Screen P10 P8 SMD Flexible
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Certification: | CE, ROHS, ISO 9001, UL |
| Model Number: | P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 6 Square Meters |
|---|---|
| Price: | $510.00/Square Meters 6-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
|
Detail Information |
|||
| Application: | Outdoor Building / Gymnasium / Real Estate/ | Name: | Advertising LED Display Screen |
|---|---|---|---|
| Life Time: | 100000hours | Working Temperature: | -30 ° C To + 50 ° C |
| Power Supply: | Meanwell/G-energy/YHY | Signal Process Bit: | 10 Or 14 Bit |
| High Light: | ISO 9001 Outdoor LED Screen,P8 SMD Flexible LED Display Screen,SMD Outdoor LED Screen |
||
Product Description

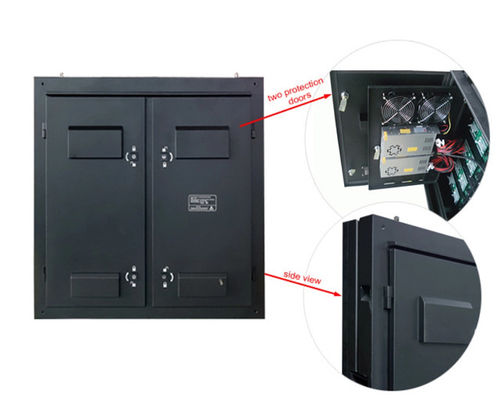

P10 P8 Full Color Advertising Billboard Panel Smd Outdoor Flexible Led Display Screen
Our Service of Outdoor Advertising LED Display Screen of Our advantages:
1, Pixel Pitch: 10mm.
2, SMD, Wide viewing angle: 160°/ 160°.
3, Full color, 281trillions.
4, IP rating: front: IP65/ rear: IP54.
5, 3years warranty.
6, Recommended minium viewing distance: 10m.
Description:
TBC SMD led displays include outdoor led billboard/ indoor led video wall, fixed installation or rental led screen, the pixel various from 1.25mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm, 10mm, 12mm, 16mm.
Features and Advantages:
1, High brightness up to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs with large viewing angle, up to 160° horizontally and 160° vertically.
3, IP65 high-performance waterproof and dust resistance, durable for any condition.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan more than 50,000hours.
5, High fresh rate up to 3840Hz, without ghosting, clear and clean.
| Outdoor Advertising LED Display Screen | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
| Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
| Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
FAQ
A: LED screen 1 sqm / LED module 100pcs
A:We support a variety of payment methods. Normally by T/T,30% down payment,70% balance paid before shipping.
A: Yes, of course. If you need, pls inform us before our production.
A: It's about 15-25days after confirmation of the order.
A: We usually ship by sea or air. By sea is about 30-40days; by air is about 3-7days.
A: Our standard control system is Linsn or Novastar. Also support other controlling system, like Huidu,Sheenled,Colorlight etc.
