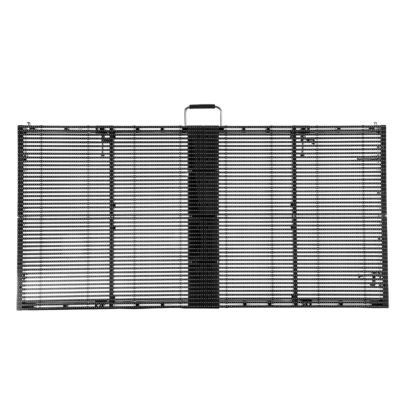

Outdoor Rental Transparent Led Display Screen Facade
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Certification: | CE, CCC, Rohs, FCC ISO |
| Model Number: | P3.91-7.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 6 Square Meters |
|---|---|
| Price: | $900.00/Square Meters 6-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
|
Detail Information |
|||
| Outdoor Place: | Window Glass /hotel / Building | Display Refresh Rate:: | 3840HZ |
|---|---|---|---|
| Panel Size: | 1000mmx500mm | Display: | Transparent Led Display Screen |
| Driving Method: | 1/16 Scaning | Power Supply: | Meanwell/G-energy/YHY |
| High Light: | outdoor rental transparent led screen,led transparent screen facade,transparent led screen rental |
||
Product Description
Transparent Led Display Screen features:
1. Good visualization
The glass-based design allows the light to pass through the glass without any influence on the building structure around. Transparency of the glass screen can up to 85%.
2. Ultra-thin, and ultra-light.
The thickness can be up to 1cm and the weight can be up to 7kg/m2High brightness, and high definition. The brightness can be up to 6500 cd/m2.
3. Easy and convenient maintenance.
It can be maintained from the inside, safer, and more convenient.
4. Saving lighting costs for the whole building.
Besides good advertising effect, LED glass display also helps to light the glass wall, thus making the glass wall more attractive and saving a lot of lighting cost.
5. Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as banks, supermarkets, theaters, business streets, hotels, public civic buildings, and landmark buildings, etc.
| Transparent Led Display Screen | Specifications | ||
| LED Module | Color configuration | SMD2121/1921 1R1G1B 3 in 1 | |
| Pixel Pitch(mm) | 3.91x7.81mm | 7.81*7.81mm | |
| Module Size(mm) | 500(W)× 125(H) | ||
| Module Weight(kg) | 0.35 | ||
| Module Max Power(W) | 25 | ||
| Module Quantity(W×H) | 2×4 | ||
| Cabinet | Cabinet Resolution(W×H) | 256×64 | 128×64 |
| Cabinet Size(mm) | 1000(W)×500(H)×80(D) | ||
| Cabinet Weight(kg) | ≤6 | ||
| Pixel Density(Dot/m2) | 16384 | ||
| Transparency | 55%-72% | ||
| Cabinet Material | Die Casting Aluminum | ||
| Optical parameter | Brightness Control Level | 256 degree by software | |
| Brightness Control Mode | Automatically/Manul Operation | ||
| Brightness at White(nits) | ≥800, can be adjusted | ||
| Viewing Angel(H/V°) | 140/140 | ||
| Max. Power(W/m2) | 380 | ||
| Ave.Power(W/m2) | 190 | ||
| AC Input | AC110~220V10%, 50~60Hz, | ||
| Drive Mode | 1/16Scan | 1/8Scan | |
| Grey Scale | 16bits | ||
| Refresh rate | ≥3840Hz/s,can be adjusted | ||
| Life Span | >100,000H | ||
| Working Temperature,Humidity | -20℃~+50℃, | ||
Competitive price as stocks and lower marketing expense;
On-time delivery + patient after-sales service;
Your logo could be added to the cabinet as requested;
Continues Quality
With more than 9 years of experience in led display producing, equipment is updated regularly. What's
more, unique standardized and module production ensure our products continuous quality;
Good heat dissipation capability and high waterproof because of the unique design of vent fan (like shutter).
