Full Color Advertising Football Stadium Perimeter LED Screen Display P6.67 P8 P10
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | King VisionLed |
Certification: | CE, ROHS, ISO 9001, UL |
Model Number: | P6.67 |
Payment & Shipping Terms:
Minimum Order Quantity: | 6 Square Meters |
---|---|
Price: | $730.00/Square Meters 6-49 Square Meters |
Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
Delivery Time: | 15 working days |
Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
Supply Ability: | 1000 Square Meter/Square Meters per Month |
Detail Information |
|||
Application: | Outdoor Building / Gymnasium / Real Estate/, Outdoor Advertising Led | Color: | Full Color |
---|---|---|---|
Usage: | Outdoors | Protection Grade: | IP65 |
Work Humidity: | 10%-90%RH | Contrast Ratio: | 3000:1 |
High Light: | P6.67 Perimeter LED Screen Display,Stadium Perimeter LED Screen Display,ROHS Stadium Perimeter LED Display |
Product Description

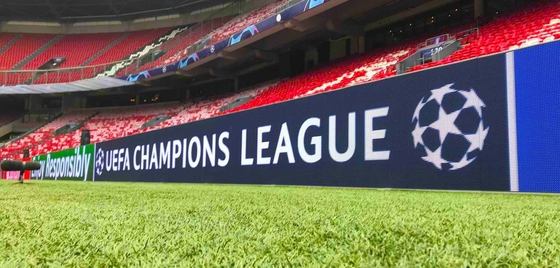

Full Color Advertising LED Outdoor Football Stadium Perimeter P6.67 P8 P10 LED Screen Display

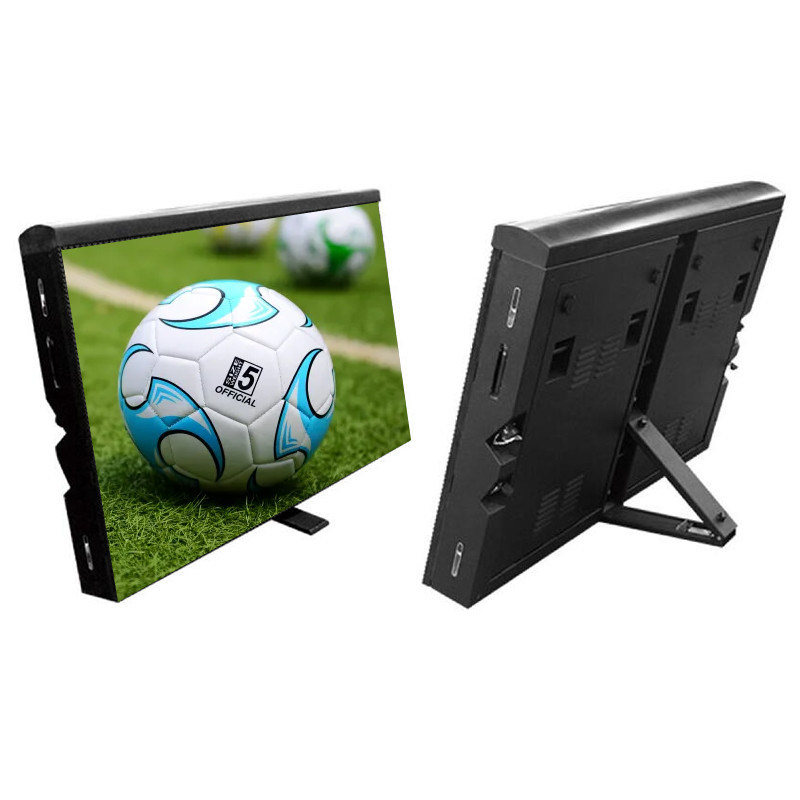

Stadium Perimeter LED Display Detail:
Product Features:
1. High brightness over 6500nits by using Epistar big LED chip from Taiwan.
2. High color output: 16 bit color so the video,images shown on the LED screen is very fresh and vivid. It catches the eyes of more audiences,making your advertising very effient.
3. High refresh rate over 3840HZ/S;when you take photoes or video,no scaning lines.
4. High waterproof function: IP65. Our cabinet backdoor has special cover,no need make additional frame to protect waterproof from the rear side.
5. Brightness can be automatically adjusted according to the real-time environment.
6. Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
Stadium Perimeter LED Display specification
Pitch(mm) | P6.667 | P8 | P10 |
Pixel density(dots/m2) | 22,500 | 15625 | 10000 |
Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
Module size | 320X320 mm | 320X320 mm | 320X320 mm mm |
Module resolution | 48X48 | 40X40 | 32X32 |
Module configuration | 2X2 | 2X2 | 2X2 |
Cabinet size | 640X640 mm | 640X640 mm | 640X640 mm |
Cabinet resolution | 96X96 | 80X80 | 64X64 |
Cabinet weight | 12.5kg/cabinet | ||
Brightness (nita nits) | ≥6500 | ≥8500 | ≥8500 |
Power Consumption | Max:900W/sqm | Max:900W/sqm | Max:850W/sqm |
Avg:300W/sqm | Avg:300W/sqm | Avg:270W/sqm | |
Protection Grade (Front/Rear) | IP65 | ||
Contrast Ratio | 3000:1 | ||
Power Supply | AC85~264V(50/60Hz) | ||
Reframe Rate | 50Hz&60Hz | ||
Lifetime(Half brightness) | 100,000Hrs | ||
Operating Temperatures | -10-60℃ | ||
Storage Temperatures | -20-60℃ | ||
Work humidity | 10%-90%RH |
Q1: Where is your nearst port?
A : Our nearst port is shenzhen port.
Q2: Are all of your products of good quality?
A: Yes, our products are of good quality, you don't have to worry about that. And we provide 2 years' warranty.
Q3: Can I visit your factory ?
A: We do have our factory, and you're welcomed to visit it at any time. The sales and the manager will accompany you to introduce our production line at that time.
Q4: What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q5: How can I select your product?
A: Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
Q6: How long will it take me to get the product?
A: We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.
