Constant Current Indoor Led Display Screen 500x500mm LED Advertising 3.9mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Certification: | CE, ROHS, ISO 9001, UL |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 8 Pieces |
|---|---|
| Price: | $210.00/Pieces 8-99 Pieces |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Church LED Video Wall | Material: | Die-casting Aluminium |
|---|---|---|---|
| Panel Size: | 500x500mm | Color Temperature: | 8000K±500 (customizable) |
| Operating Temperature: | –10℃~ 40℃ | Working Voltage: | AC 220V/110V ±10% |
| High Light: | ROHS Indoor Led Display Screen,3.9mm Indoor Led Display Screen,AC220V Church LED Video Wall |
||
Product Description

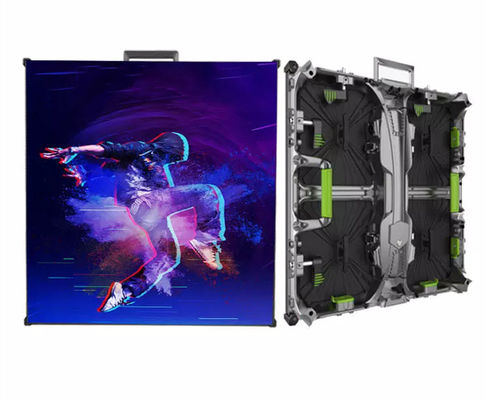

Constant Current Indoor Led Display Screen 500x500mm LED Advertising Screen 3.9mm
Feature:
Ultra-high resolution and wide viewing angel
The mere 4mm pixel pitch assure the high definition in close distance and SMD boosts
the viewing angel to 140 degree, making it the first choice for indoor display.
Compact design
The cabinet thickness is only 165mm, decreasing the installation space to
a large extent, particularly suiting those with limited installation space.
Fixing and rental use creates more applications
Fix and rental installation are both available. thus it can be used in occasions
such as indoor stage, conference hall, hotel, events, etc., reducing cost mostly.
| Indoor Rental led screen specification | |||
| Pixel | 2.97mm | 3.91mm | 4.81mm |
| LED Encapsulation | SMD1515 | SMD2121 | SMD2121 |
| Brightness | 1100nit | 1100nit | 1100nit |
| Module Size(mm) | 250x250 | 250x250/ 250×500 | 250×500/250x250 |
| Cabinet Size | 500x500x80 | 500×1000×80/500x500x80 | 500×1000×80/500x500x80 |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Scan Method | 1/14 Scan | 1/16 Scan | 1/13 Scan |
| Weight | 8Kg | 12.5Kg/ 8Kg | 12.5Kg/ 8Kg |
| Cabinet Resolution | 84x168/84x84dots | 256x128dots / 128x128dots | 104x208dots/104x104dots |
| Pixel Density | 112896Pixel/㎡ | 65536 Pixel/㎡ | 43264 Pixel/㎡ |
| Refresh Frequency | ≥3840Hz | ||
| Viewing Angle | 140/140 | 140/140 | 140/140 |
| Working Voltage | 110-220Volt/50/60hz | 110-220Volt/50/60hz | 110-220Volt/50/60hz |
| IP waterproof | IP43 | IP43 | IP43 |
| Optimal Viewing Distance | ≥ 2m | ≥ 3m | ≥ 4m |
| Working Temperature | -20~45 ℃ | - 20~40℃ | -20~45 ℃ |
Kingvisionled Advantage:
1. Excellent design should be easy to understood, the product will talk for itself, canceling the necessity of detailed explain.
2. Seamless stitching: With our special connector design it is easy to reduce gaps while installing, creating a perfect display.
3. Adopt the latest anti-collision technology, make a more stable cabinet during rental events, make a longer life span.
4. Magnesium aluminum alloy control box, adapt to all kinds of weather.
5. Customized Arc design: bevel edge cabinet design according to customer requirements makes Arc screen assembling.
6. Seamless connection: under 0.1 mm tolerance gap between cabinet and module, under 0.2mm tolerance gap between cabinets.
7. Support rear service, it’s easy to maintenance.
8.Back-up data connection: Data transmission is vital for rental use. Because of this, there is an included back-up data connection. Once there is any unexpected problem, it can be transferred to the back-up immediately.
9.Update receiving card:NOVASTAR A5s EMC-Class B receiving cards
Our Service and Mission of Indoor Led Display Screen:
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
