Outdoor Display P10 Full Color SMD LED Digital Billboards With Steel Cabinet
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Certification: | CE, ROHS, ISO 9001, UL |
| Model Number: | P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 6 Square Meters |
|---|---|
| Price: | $510.00/Square Meters 6-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
|
Detail Information |
|||
| Application: | Outdoor Digital Advertising Display Screens | Name: | Outdoor Perimeter Led Display |
|---|---|---|---|
| Life Time: | 100000hours | Working Temperature: | -30 ° C To + 50 ° C |
| Power Supply: | Meanwell/G-energy/YHY | Operation System: | Windows XP/7/10 |
| High Light: | SMD LED Digital Billboards,P10 LED Digital Billboards,Magnesium Alloy Cabinet Outdoor LED Screen |
||
Product Description
Outdoor Waterproof Fixed Installation Front Service Outdoor Advertising Led Display Screen P8
Our Service of Outdoor Advertising LED Display Screen of Our advantages:
1, Pixel Pitch: 10mm.
2, SMD, Wide viewing angle: 160°/ 160°.
3, Full color, 281trillions.

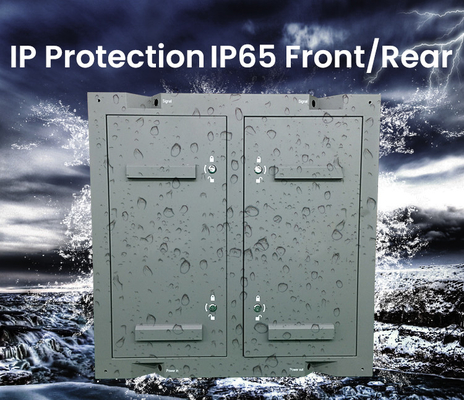

4, IP rating: front: IP65/ rear: IP54.
5, 3years warranty.
6, Recommended minium viewing distance: 10m.
Description:
TBC SMD led displays include outdoor led billboard/ indoor led video wall, fixed installation or rental led screen, the pixel various from 1.25mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm, 10mm, 12mm, 16mm.
Features and Advantages:
1, High brightness up to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs with large viewing angle, up to 160° horizontally and 160° vertically.
3, IP65 high-performance waterproof and dust resistance, durable for any condition.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan more than 50,000hours.
5, High fresh rate up to 3840Hz, without ghosting, clear and clean.
| Outdoor Advertising LED Display Screen | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Chips | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
| Pixel density(dots/m2) | 62500 | 40000 | 22477 | 15625 | 10000 |
| Driving Method | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
| Cabinet Weight( Kg/m2 ) | 35 | 35 | 35 | 35 | 35 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥5500 | ≥5000 | ≥5500 | ≥5800 | ≥6000 |
| Viewing Angle (Vertical / Horizontal) | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° | 120° / 120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
Main Features:
1. WIFI/USB control;4G optional
2. IP65 Waterproof, eye-catching
3. Nano light guide panel on middle which can guide the light more average from side to middle..
4. Bottom are acrylic with two U hole on top which can change poster easily without take off the screw.
5. High brightness leds edge-lit.
6. Wall mount or hang style.
FAQ OF street advertising screens
Q1: Where is your nearst port?
A : Our nearst port is shenzhen port.
Q2: Are all of your products of good quality?
A: Yes, our products are of good quality, you don't have to worry about that. And we provide 2 years' warranty.
Q3: Can I visit your factory ?
A: We do have our factory, and you're welcomed to visit it at any time. The sales and the manager will accompany you to introduce our production line at that time.
Q4: What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q5: How can I select your product?
A: Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.
