Outdoor Ultra Thin LED Mesh Display Full Color Curtain Screen High Refresh Rate
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | King VisionLed |
Certification: | CE, CCC, Rohs, FCC ISO |
Model Number: | P15.625 |
Payment & Shipping Terms:
Minimum Order Quantity: | 6 Square Meters |
---|---|
Price: | $720.00/Square Meters 6-49 Square Meters |
Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 Square Meter/Square Meters per Month |
Detail Information |
|||

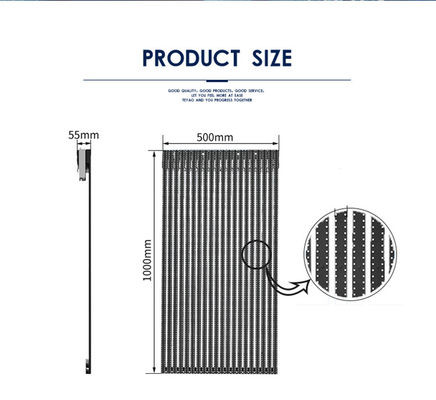

Led Lamp: | DIP346 | Panel Size: | 500x1000mm |
---|---|---|---|
Function: | Stage,church Led,conference,fashion Show,live Concerts | Type: | LED Curtain Screen |
Life Span: | 100000 Hours | Working Humidity Range: | 10%-90% |
High Light: | P15.625 LED Mesh Display,DIP346 LED Mesh Display,500x1000mm Panel LED Curtain Screen |
Product Description
Function and Technology Character Introduction:
1. High strength, adjustable, can meet customer requirements according to the use environment.
2. The best uniformity, can solve the mosaic problem commendably, and the light consistency is excellent
3. Clear, exquisite and true display effects for pictures and text
4. Large viewing angle, 160 degrees horizontal line, within this range can be seen from all angles, no picture changes, no color cast
5. Each lamp can be repaired, so the maintenance cost is low and easy to repair.
6. Good uniformity, high consistency, large viewing angle, each lamp can be repaired
7. From material to finished product, from design to production, we control all steps, which is the guarantee of quality and reliability.
8. Minimalist design, thin and transparent, permeability 40%-80%, fanless design, no noise, good heat dissipation performance
LED Curtain Screen | PARAMETER | ||
Production Series | P33.33 | P16.67 | P15.625 |
Pixels | DIP346RGB | ||
Horizontal Spacing | 33.33mm | 16.67mm | 15.625mm |
Vertical Spacing | 16.67mm | 16.67mm | 15.625 |
Gradation | 16bits | ||
Brightness | ≥7000CD/sqm | ≥6500CD/sqm | ≥7500CD/sqm |
Brightness range | 5% ~ 100% Without loss of gray | ||
Horizontal Viewing Angle | ≥110° | ||
Vertical Viewing Angle | ≥60° | ||
Best Viewing distance | 20 ~ 300m | 20 ~ 400m | 15 ~ 300m |
Maximum power consumption | 500w/sqm | 500w/sqm | 800w/sqm |
Average power consumption | 150w/sqm | 150w/sqm | 240w/sqm |
Weight | 13KG/sqm | 12KG/sqm | 18KG/sqm |
Thickness | 6cm | ||
Thickness of installation | 11.8cm | ||
Refresh rate | 3840Hz | ||
Display mode | 1920 x 1080 pixels | ||
Lifespan | ≥100 thousand hours (11 years) | ||
Hollow rate | 60.00% | 70.00% | 40.00% |
Protection rating | IP65 | ||
Power modules | High conversion efficiency (93%) PFC | ||
Fire performance | Full V0 class flame retardant |


1. Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2. Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance
3. What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4. What's your delivery time?
Wthin 7-21 days after we receiving deposit
5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air or sea
