Product Details:

Place of Origin: Guangdong, China
Brand Name: King VisionLed
Certification: CE, CCC, Rohs, FCC ISO
Model Number: P1.25

Payment & Shipping Terms:

Minimum Order Quantity: 6 Square Meters
Price: $1,920.00/Square Meters 6-49 Square Meters
Packaging Details: Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Square Meter/Square Meters per Week
Get Best Price Contact Now

Detail Information

Apply: Conference Room / Hotel / Real Estate High Refresh Rate: 3840HZ
Panel Size: 600X337.5mm Cabinet Size: Customized
Module Resolution: 120*135pixels Name: 4K 8K P1.25 LED Video Wall
High Light:

1R1G1B 4K Indoor Video Wall

,

1000nits Small LED Display Board

,

Full color LED Display Board P1.25

Product Description

16:9 Golden 4K 8K Indoor Video Wall 500W/M2 1000nits Small LED Display Board P1.25



 4K 8K P1.25 LED Video Wall Featrues:

1. 16:9 Golden Division Ratio

IU Series HD led video wall can be point to point spliced ​​to the LED display fo standard 720P, 1080P, 2160P, 3840P, etc.

2. Front Maintenance

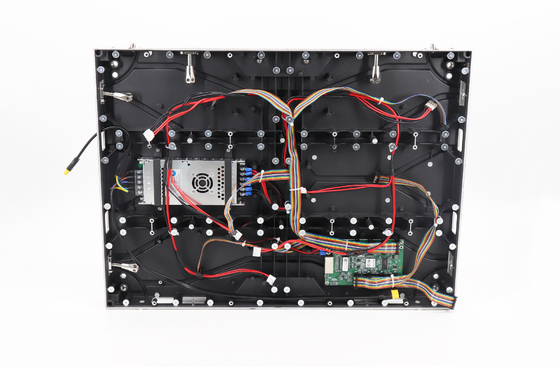

The IU series HD led video wall LED modules, receiver card, power supply are all front maintenance,

meet the needs of small space or where the needs of the cabinet thickness, enhanced the vision of
the space as well as its visionary effect.

3. Dual Backup System

Supporting Dual Control System,Dual Power Supply backup,Autoatically Switch the Picture in an
LED screen when it occurs any problems to make sure a stable and reliable image.



item P1.25  4K 8K P1.25 LED Video Wall
Color Full-color real pixels
Use environment Indoor
Pixel pitch 1.25mm
Module size 200*150mm
Physical density 640000 dots/㎡
Pixel configuration 1R1G1B
LED chip SMD1010
Module resolution 160*120
Module power 20w
Recommended viewing distance >1.2m
Best viewing angle H: 160°; V:160°
Maximum power consumption 700w
Cabinet size W400m×H300mm
Standard cabinet resolution 320*240
Driving method 1/30 Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥3840Hz
White balance brightness ≥700cd
Operating temperature/Humidity -40℃~+60℃
Ingress protection IP43
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7M(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >5000 hours
Life Time >100,000 Hours
The rate <0.0001


1R1G1B 4K Indoor Video Wall 500W/M2 1000nits Small LED Display Board P1.25 01R1G1B 4K Indoor Video Wall 500W/M2 1000nits Small LED Display Board P1.25 11R1G1B 4K Indoor Video Wall 500W/M2 1000nits Small LED Display Board P1.25 21R1G1B 4K Indoor Video Wall 500W/M2 1000nits Small LED Display Board P1.25 3

After-sale service  of 4K 8K P1.25 LED Video Wall

1.Do you provide onsite assistance?

Yes, our trained professional is available during your event to install, dismantle and support.



2: How is the switching sequence of LED display screen?

1) screen switching sequence: on, first turn on the computer, then screen; off, first shut off screen, then computer. 2) Interval of switching LED display must be greater than 1 minute.



3: How is the ambient temperature of LED display screen?

When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time. Screen shall be installed in temperature from-10°C to 40°C. Over environment temperature range, temperature control equipment must be installed. It is forbidden to install LED display near any heat source.
