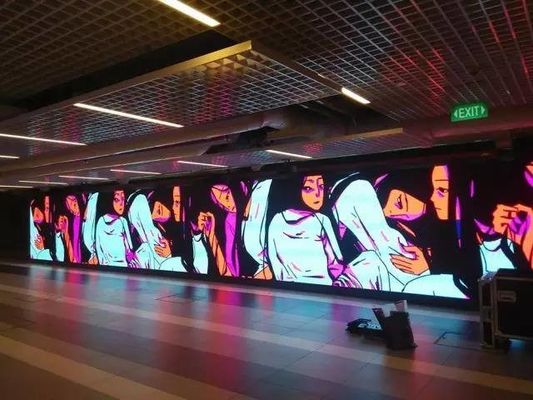

Advertisement 1.8 HD LED display Indoor 8K Led Video Wall Panels 3840 Hz Refresh Rate
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | King Visionled |
Certification: | CE, CCC, Rohs, FCC ISO |
Model Number: | P1.875 |
Payment & Shipping Terms:
Minimum Order Quantity: | Min 6 Square meter |
---|---|
Price: | USD 1,550.00- 2,000.00/SQM |
Packaging Details: | Carton box, Plywood case or flight case, Single package size is 84X68X38 cm about 50kg |
Delivery Time: | 15 Working days |
Payment Terms: | D/P, T/T, L/C, D/A |
Supply Ability: | 1000 sqm / month |
Detail Information |
|||
Apply: | TV Station,control Room,command Center Etc, | Panel Size: | 480x480mmx57mm |
---|---|---|---|
Module Size: | 160mm*160mm | Refresh Rate: | 3840Hz |
Product Name: | 8K LED Video Wall | Installation Type: | Front&Rear Installation |
Product Description
Advertisement 1.8 HD LED display Indoor 8K Led Video Wall Panels 3840 Hz Refresh Rate
8K LED Video Wall Product Description
1. Ultra High definition: made with high quality SMD0808 black led beams
2. Seamless spliced, good evenness for 2K or 4K HD video, perfect display vision
3. High refresh rate up 3800 Hz, no ghost effection
4. Wide view angle: up to 160 degree for vertical and horizontal, no color difference
5. High strength: made with strong Die-casting Aluminum cabinets, good heat dissipation, and longer working life
6. Good resolution ratio: cabinet size based on 16:9 for screen size with 16:9 too, ensure the images with high fineness
7. Double back-up: double data and power supply to keep the data in safe condition and keep working even power is interrupt
4K 8K LED Video Wall of Technical Parameter
Parameter | P1.875mm HD LED Screen | P2.5mm HD LED Video wall |
Pixel Pitch | 1.875mm | 2.5mm |
Pixel Configuration | SMD 3-IN-1 | SMD2121 3-IN-1 |
Pixel Density | 284,089 dots/m² | 160,000 dots/m² |
Module size | 240x240mm | 240x240mm |
Cabinet Size | 480x480mmx57mm | 480x480mmx57mm |
Panel Dimension (WxHxD) | 18.9''X18.9''X3'' | 18.9''X18.9''X3'' |
Panel Material | Die-casting Aluminum | Die-casting Aluminum |
Panel Weight | 4.9kg/panel (10.8lb/panel) | 6.8kg/panel (15lb/panel) |
Refresh Rate | 1920Hz~3840Hz | 1920Hz~3840Hz |
Brightness | 1000nits(Adjustable) | 1200nits(Adjustable) |
Horizontal Viewing Angle(°) | 160 ° | 160 ° |
Vertical Viewing Angle(°) | 160 ° | 160 ° |
AC Power Input(V) | AC110V~ 220V ±10% | AC110V~ 220V ±10% |
AC Power Frequency(Hz) | 50 ~ 60 Hz | 50 ~ 60 Hz |
Max. Power(W/m²) | 565 W/m² | 520 W/m² |
Avg. Power(W/m²) | 189 W/m² | 170 W/m² |
Storage/Operating Humidity(RH ) | 10% ~ 90%RH | 10% ~ 90%RH |
IP Rating(IP ) | IP30 / IP30 | IP30 / IP30 |
Lifetime Typical Value(Hrs) | 100,000 Hrs | 100,000 Hrs |
Installation Type | Front&Rear installation | Front&Rear installation |
Maintenance Method | Front&Rear Access Maintenance | Front&Rear Access Maintenance |
Product Details & Application
1.Magnetic Module with frame-sharing 480x480mm die-casting aluminum cabinets
2. Friendly Cabinet design with comfortable rounded corner handle,heat emission holes,signal indicator testing button,OEM Label, Anti-collision corner,Hidden cables design and front maintenance tool design.
3.Free-structure Install, flexible for wall mounted fixed and saving installation cost and space
4.Wide application indoor stage rental or indoor advertising or presentation
Our Services of 4K 8K LED Video WALL
What is the payment method?
We support a variety of payment methods, the most common is the TT;
How about your production ability?
We have 10 production lines with all series of automatic production machines. Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;
What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system,like HD,Xixun,TF, Colorlight, etc;
Are you manufacturer or trading company?
We are manufacturer with professional marketing and service team;
Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor;
Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system;
