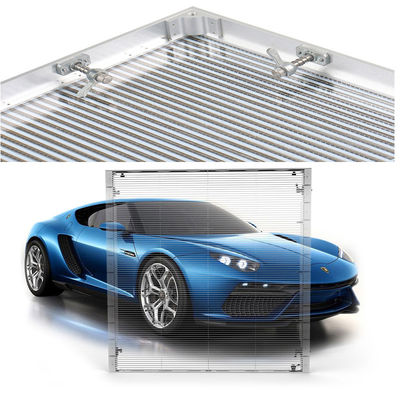

P3.91 P7.82 Transparent Led Curtain Display Strip Outdoor Semi Arbitrary Shape
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Certification: | CE, CCC, Rohs, FCC ISO |
| Model Number: | P3.91-7.82 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 6 Square Meters |
|---|---|
| Price: | $780.00/Square Meters 6-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
|
Detail Information |
|||
| Function: | Conference Room / Hotel / Real Estate | Pixel Pitch: | 3.91-7.82mm |
|---|---|---|---|
| Weight Of Cabinet: | 12kg | Thickness: | 80mm |
| Type: | LED Curtain Screen | Power Supply: | Meanwell/G-energy/YHY |
| High Light: | P7.82 Transparent Led Curtain Display Strip,led strip curtain display,P3.91 Transparent Led Curtain Display Strip |
||
Product Description
LED Curtain Screen Semi-Outdoor Led Strip P3.91-7.82 Transparent Display Screen
Functin of LED Curtain Screen:
1. High reliability. 24h/7day advertising all the time and all weather conditions.
2. Energy-saving technology,due to special driver ic and led and power supply
3. High brightness lamp beads, brightness can be automatically adjusted
4. TiSuper high brightness 6000nits makes led screen still be very clear under the sunshine.dy and beautiful , good heat dissipation.
5. High refresh rate makea good visual effect .
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
7. Long life span: over100,000hours, warranty at least 2 years.
8. You need = We design: Provide Personal- Customized led display offer.
| LED Curtain Screen | Specifications | ||
| LED Module | Color configuration | SMD2121/1921 1R1G1B 3 in 1 | |
| Pixel Pitch(mm) | 3.91x7.81mm | 7.81*7.81mm | |
| Module Size(mm) | 500(W)× 125(H) | ||
| Module Weight(kg) | 0.35 | ||
| Module Max Power(W) | 25 | ||
| Module Quantity(W×H) | 2×4 | ||
| Cabinet | Cabinet Resolution(W×H) | 256×64 | 128×64 |
| Cabinet Size(mm) | 1000(W)×500(H)×80(D) | ||
| Cabinet Weight(kg) | ≤6 | ||
| Pixel Density(Dot/m2) | 16384 | ||
| Transparency | 55%-72% | ||
| Cabinet Material | Die Casting Aluminum | ||
| Optical parameter | Brightness Control Level | 256 degree by software | |
| Brightness Control Mode | Automatically/Manul Operation | ||
| Brightness at White(nits) | ≥800, can be adjusted | ||
| Viewing Angel(H/V°) | 140/140 | ||
| Max. Power(W/m2) | 380 | ||
| Ave.Power(W/m2) | 190 | ||
| AC Input | AC110~220V10%, 50~60Hz, | ||
| Drive Mode | 1/16Scan | 1/8Scan | |
| Grey Scale | 16bits | ||
| Refresh rate | ≥3840Hz/s,can be adjusted | ||
| Life Span | >100,000H | ||
| Working Temperature,Humidity | -20℃~+50℃, | ||
LED Curtain Screen Service:
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
We could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance
if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years,
service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
