20ft P4mm P8mm P10mm Large Outdoor Led Display Screens Module Building
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | King VisionLed |
| Model Number: | P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 6 Square Meters |
|---|---|
| Price: | $410.00/Square Meters 6-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Supply Ability: | 1000 Square Meter/Square Meters per Week |
|
Detail Information |
|||
| Application: | Outdoor Building / Gymnasium / Real Estate/ | Color: | Full Color |
|---|---|---|---|

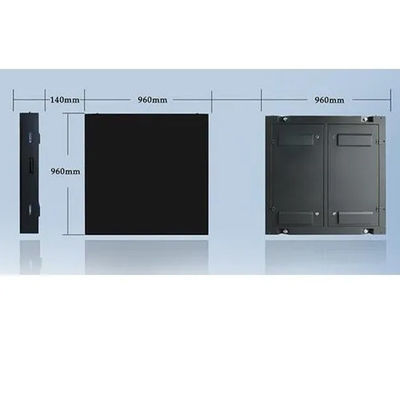

| Panel Size: | 960mmx960mm | Pixel Pitch: | 10mm |
| Pixels: | 10mm | Cabinet Size: | 960mmx960mm/1024x1024mm |
| Weight Of Cabinet: | 38kg | Thickness: | 140mm |
| Driving Method: | 1/4 Scaning | Usage: | Outdoors |
| Apply To: | Stage,church Led,conference,fashion Show,live Concerts | Luminance Of White Balance: | Above 6500nits |
| Main Ic: | ICN2038S | Power Supply: | Meanwell/G-energy/YHY |
| Port: | Shenzhen | ||
| High Light: | 20ft led outdoor screen Kingvisionled,20ft large outdoor led display screens Module,P10mm Large Outdoor Led Display Screens Module |
||
Product Description
The size of the Outdoor LED Screen displays and LED signs are very important to know to determine the resolution per square meter (or per square feet)
we have to set for the screen. This is to avoid low quality video with very little detail or a very high quality video that is not necessary (in some cases it depends on the customer's project type)
The variable that decides the LED screen resolution per square meter is called the pixel pitch, which tells us the distance between the LED´s in millimeters.
The shorter the distance of the LED´s, the higher the screen resolution per square meter, and a greater distance, the resolution will be less.
In the whole world, which have more than 1000 LED commercial billboards around, those are the success of famous modern cities,Let your imagination
fly to Canada, to Sweden, to Spain, to Iraq, fly to Sri Lanka. King Visionled can help you determine and develop your outdoor LED commercial advertising project
and boost up sales through visual and effective marketing, mass medium and publicity.
|
Outdoor Fixed LED Screen Specification
|
|
|
|
|
|
|
|
|
||||||||
|
Pixe Pictch
|
4mm
|
5mm
|
6mm
|
|
|
8mm
|
|
|
||||||||
|
Led encapsulation
|
SMD1921
|
SMD2727
|
SMD2727
|
|
|
SMD2727/SMD3535
|
|
|
||||||||
|
Scan Mode
|
1/8 Scan
|
1/8 Scan
|
1/8 Scan
|
|
|
1/4 Scan
|
|
|
||||||||
|
Pixe Per Sq.m
|
62,500 Pixel
|
40,000 Pixel
|
27,777 Pixel
|
|
|
15,625 Pixel
|
|
|
||||||||
|
Module Size(W*H)
|
256*128mm
|
320*160mm
|
192*192mm
|
|
|
320*320mm/320*160mm
|
|
|
||||||||
|
Cabinet Size(W*H*D)
|
1024*768mm
|
960*960mm
|
960*960mm
|
|
|
960*960mm
|
|
|
||||||||
|
Cabinet Weight
|
45KG/Pieces
|
40KG/Pieces
|
40KG/Pieces
|
|
|
45KG/Pieces
|
|
|
||||||||
|
Max Power Consumption
|
900Watt/㎡
|
900Watt/㎡
|
900Watt/㎡
|
|
|
900Watt/㎡
|
|
|
||||||||
|
Brightness(Nits/㎡)
|
5000Nits
|
5500Nits
|
6000Nits
|
|
|
6500Nits
|
|
|
||||||||
|
Maintenance methods
|
Rear/Front Serviceable
|
|
|
|
|
|
|
|
||||||||
|
Cabinet Material
|
Steel/Aluminun Option
|
|
|
|
|
|
|
|
||||||||
|
Refresh Rate
|
1920hz-3840hz
|
|
|
|
|
|
|
|
||||||||
|
Color temperature
|
6500K ±500(Adjustable)
|
|
|
|
|
|
|
|
||||||||
|
Grey Scale
|
14-16bits
|
|
|
|
|
|
|
|
||||||||
|
Average Power Consumption
|
500Watt/㎡
|
|
|
|
|
|
|
|
||||||||
|
IP Protection
|
IP65 Front/Rear
|
|
|
|
|
|
|
|
||||||||
|
Operating Temperature
|
-20°C to 50°C
|
|
|
|
|
|
|
|
||||||||
|
Working Voltage
|
100-240Volt(50-60hz)
|
|
|
|
|
|
|
|
||||||||
A1: For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline
Q2: Can a sample order be placed before the mass production?
A2: Yes, we acceptable sample orders led display, please let us know your detail request then we will send you the sample asap
for confirmation.
Q3: Can a sample product be free?
A3: We offer free sample for some models, please advise what you need to see if we have available free samples here to be sent
Q4: Can a led display be any size?
A4: Nope, according the led module size and cabient size, such as p4.81mm is 500x500mm for smallest unit.
After the order is placed, a processional training will be offered, including software use, operate safety,
2) Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the
3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance
