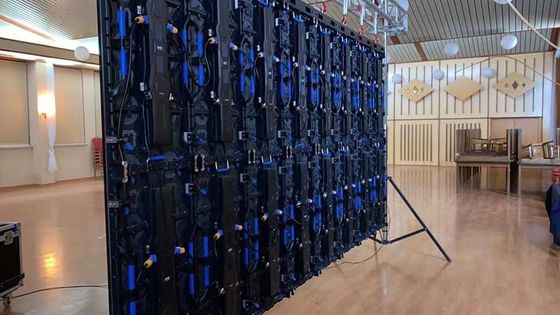

3.91mm P5 Led Module Outdoor Electronic Billboard Die Casting Aluminum Led Cabinet

3.91mm P5 Led Module Outdoor Electronic Billboard Die Casting Aluminum Led Cabinet

Product Details:

Place of Origin: Guangdong, China
Brand Name: King VisionLed
Certification: CE, ROHS, ISO 9001, UL
Model Number: P3.91

Payment & Shipping Terms:

Minimum Order Quantity: 8 Square Meters
Price: $780.00/Square Meters 8-49 Square Meters
Packaging Details: Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case
Delivery Time: 15 working days
Payment Terms: D/A, D/P, T/T, Western Union, L/C, MoneyGram
Supply Ability: 1000 Square Meter/Square Meters per Month
Get Best Price Contact Now

Detail Information

Cabinet Size: 500x1000mm Pixel Pitch: 3.91mm
Function: Outdoor Rental Led Display Software Environment: WindowsNT,Windows1999,WindowsXP
Mean Time Between Failure: >5000hours Port: Shenzhen
High Light:

3.91mm P5 Led Module Outdoor

,

3.91mm Die Casting Aluminum Led Cabinet

,

outdoor electronic display board

Product Description

Outdoor Rental Led Display P3.91/P4.81 Die-Casting Aluminum 500x1000mm For Event Stage



Detail of Outdoor Rental Led Display:


1. Seamless splicing, could be adjusted, more easy to maintain.
2. Low noise, low consumption, ensure the long lifespan.
3. Die-casting aluminum panel of great dissipation could save your electricity cost substantially.
4. High quality LED chip,wide viewing angle,good flatness,anti-static,high brightness, low attenuation,good stability.
5. Adopts 500x1000mm cabinet size,fast installation,vivid image display with wide viewing angle. Varieties of display mode, easy to operate.
6. Standard cabinet design,to make the same cabinet size can apply to different pixel display.Therefore,it’s more convenient to install and dismantle for the whole screen. Lightweight cabinet design, save transportation cost.
7. Also can make with P3.9 Indoor, P3.9 outdoor, P4.81 outdoor rental LED display.





Outdoor Rental Led Display KL 1 Series KL2 Series KL3 Series
Pixe Pictch 3.91mm 3.91mm 4.81mm
Led encapsulation SMD2121 SMD1921 SMD1921
Scan Mode 1/16 Scan 1/16 Scan 1/13 Scan
Pixe Per Sq.m 65536 Pixel 65,536 Pixel 43,264 Pixel
Brightness(Nits/㎡) 1100 Nits 4500 Nits 4500 Nits
IP Protection IP43 IP65 IP65
Maintenance Methods Rear Serviceable
Cabinet Material Die Casting Aluminum
Module Size(W*H) 250mm*250mm
Cabinet Size(W*H*D) 500mm*500mm/500mm*1000mm
Refresh Rate 3840Hz
Color temperature 9500K ±500(Adjustable)
Grey Scale 14-16Bit
Cabinet Weight 7KG/12KG
Average Power Consumption 350-400Watt/㎡
Max Power Consumption 800Watt/㎡
Operating Temperature -20°C to 50°C
Curved Angle ±15 Degrees



3.91mm P5 Led Module Outdoor Electronic Billboard Die Casting Aluminum Led Cabinet 03.91mm P5 Led Module Outdoor Electronic Billboard Die Casting Aluminum Led Cabinet 13.91mm P5 Led Module Outdoor Electronic Billboard Die Casting Aluminum Led Cabinet 23.91mm P5 Led Module Outdoor Electronic Billboard Die Casting Aluminum Led Cabinet 3

Outdoor Rental Led Display FAQ:

Q1: Can the LED display screen work when lightning?

If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes. Do not use the display in strong lightning and other severe weather.



Q2: Can the LED display screen display long time in one kind of color?

Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.



Q3: How long can the LED display screen display?

LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day). And it maintains more than 2 hours every time.
